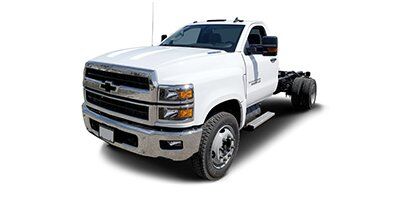

2019 Chevrolet Silverado MD Work Truck
Turbocharged Diesel V8 6.6L/402,
Work Truck,
Automatic,
# H863351T,
297,913 mi.
VIN
1HTKHPVK8KH863351
Automatic
Regular Cab Chassis-Cab
RWD
8 Cyl
Summit White
Call For Price
VEHICLE INFORMATION
Stock |
H863351T |
VIN |
1HTKHPVK8KH863351 |
Type |
Used |
Year |
2019 |
Make |
Chevrolet |
Model |
Silverado MD |
Mileage |
297,913 |
Trim |
Work Truck |
Model Number |
CC56403 |
Body Style |
Regular Cab Chassis-Cab |
Style |
2WD Reg Cab Work Truck |
Transmission |
Automatic |
Transmission Speed |
6 |
Doors |
2 |
Cylinders |
8 |
Displacement |
6.6L |
Block Type |
V |
Aspiration Type |
Direct Injection |
Description |
Turbocharged Diesel V8 6.6L/402 |
Drivetrain |
RWD |
Fuel Type |
Diesel Fuel |
Wheelbase Code |
141 |
Exterior Color |
Summit White |
Interior Color |
Dark Ash Seats With Jet Black Interior Accents |
Portions of the data provided are © 2025 Autodata, Inc. dba ChromeData
EQUIPMENT DETAIL
Installed Packages & Accessories
Total $8,995
-
Gvwr, 19,500 Lbs. (8845 Kg)$2,255
-
26,000 Lbs. Gcwr (11,793 Kg)
-
Engine, Duramax 6.6L Turbo-Diesel V8, B20-Diesel Compatible350 hp @ 2700 rpm, 700 lb-ft torque @ 1600 rpm
-
Power Take Off, Engine Control Provisions$275
-
Rugged Duty Service Transmission, Automatic Close-Ratio 6 Spd With Double Overdrive, Allison, A1700Rdsratios: 3.10 1ST, 1.80 2ND, 1.40 3RD, 1.00 4TH, 0.70 5TH, 0.61 6TH Rugged Duty Series, 19.5K GVW & 26K GCW Max.,$290
-
Rear Axle, 4.30 RatioMax road speed: 75 MPH
-
Front Axle, 7,000 Lbs., Dana Spicer D800-N, "I"-Beam, Non-Driving
-
Front Suspension, 7,000 Lbs. (3,175 Kg) Multi-Leaf, Includes Shock Absorbers
-
Rear Axle, 13,500 Lb. (6,124 Kg) Dana Spicer S14-110, Single Reduction$355
-
Rear Suspension, 15,500 Lbs. (7,031 Kg) Multi-Leaf, Vari-Rate$50
-
Wheelbase, 219" (556.3 Cm), 138" Ca$700
-
Work Truck Preferred Equipment Groupincludes standard equipment
-
Wheels, 19.5" X 6.75", Aluminum, 8-Holes, Hub Piloted$1,050
-
Tires, Front 225/70R19.5G Highway Blackwall ContinentalMax Axle Load: 7,940 lbs.
-
Tires, Rear 225/70R19.5G Traction Blackwall ContinentalMax Axle Load: 15,000 lbs.$380
-
Spare Tire Delete
-
Paint, Solid
-
Summit White
-
Seats, Front 40/20/40 Split-Bench, 3-Passengerdriver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Vinyl has fixed lumbar and cloth has manually adjustable driver lumbar.
-
Dark Ash Seats With Jet Black Interior Accents, Cloth Seat Trim
-
Air Conditioning, Single-Zone
-
Audio System, 7" Diagonal Color Touch-Screen With Chevrolet InfotainmentAM/FM stereo with seek-and-scan and digital clock, includes Bluetooth streaming audio for music and select phones.$275
-
Engine Block Heater
-
Battery, Top Post Threaded, Battery Jump Start Stud(located on battery box)$50
-
Recovery Hooks, Front, Frame-Mounted, Black$25
-
Axle To End Of Frame, 75"$100
-
Front Stabilizer Bar$175
-
Shock Absorbers, Rear$65
-
Fuel Tank, Front, 25 Gallon$125
-
Dpf, Diesel Particulate Filter, Manual Regenerationcustomer regeneration will not be allowed until the DPF load percentage has reached 100% full and a driver information center (DIC) message has been shown$250
-
Additional Fuel, 5 Gallons$20
-
Exhaust System, Rear Exit$50
-
Exhaust Brake$200
-
Air Compressor Accessory Drive$350
-
Bumper, Front Chrome$100
-
Assist Steps, Aluminum$200
-
Front Fender Extension, Painted Body Color$105
-
Grille, Chrome$195
-
Grille Guard Screen, Stone Protection(mounted to bumper)$90
-
Tail Lamp Provisions, Located Inside Of Frame
-
Mirrors, Outside Heated Power-Adjustable Vertical Trailering, Upper Glass, Manual-Folding And Extending, Black.Includes integrated turn signal indicators consisting of 51 square inch flat mirror surface positioned over a 24.5 square inch convex mirror surface with a common head and lower convex spotter glass (convex glass is not heated and not power adjustable) and addition of Auxiliary cargo lamp for backing up (helps to see trailer when backing up with a trailer) and amber auxiliary clearance lamp$355
-
Windows, Power With Driver Express Up And Down And Express Down On All Other Windows$290
-
License Plate Kit, Front$15
-
Electrical Provisions, Rear Of Cab, Upfitter, Body Builder Wiringincludes Sealed Connectors for Tail/Amber Turn/Marker/Backup/Accessory Power/Ground and Sealed Connector for Stop/Turn$115
-
6-Speaker Audio System
-
Upfitter Switchesprovides up to 4-30 amp circuits to facilitate installation of aftermarket electrical accessories located on the instrument panel$115
-
Remote Keyless Entry$175
-
Rear Vision Camera, Display Integrated Into Radio$200
-
Engine Block Heater Processing Code
Standard Equipment
Exterior
- Antenna, fixed mast
- Assist steps
- Bumper, front, Black
- Door handles, Black
- Front fender extension, mold-in-color Black (Not available with (FNP) Body color front fender extension.)
- Glass, solar absorbing, tinted
- Grille guard screen, insect protection (mounted behind grille)
- Grille, base, molded in color, Black
- Headlamps, halogen projector-beam
- Lamps, cargo area, cab mounted with switch on center switch bank
- Lamps, rear, stop/turn/backup (1-piece assembly) with license plate light
- Lamps, Smoked Amber roof marker
- Mirrors, outside high-visibility vertical camper-style, Black with manual folding and extension and lower convex spotter glass
- Spare tire delete
- Tail lamp provisions, located outside of frame (Will be installed with (F0C) 49" axle to end of frame and wheelbase (FQT, ED9, ER2, ED5, FNV or EM1) and rear mechanical suspension (FU7, GR3 or GR4). Will be required with (F0D) 63" axle to end of frame and wheelbase (ED9, ER2, ED5 or EM1) and rear air suspension (GP1, GP8 or G40). Will be required with (F0D) 63" axle to end of frame and wheelbase (ED9, ER2, ED5 or EM1) and rear mechanical suspension (FU7, GR3 or GR4) and (JL1) trailer brake controller. Will be required with (F0K) 91" axle to end of frame and (FPN) 231" wheelbase. Will be required with (F0I) 75" axle to end of frame and wheelbase (ED5, EQB, ER2 or FRP) and (JL1) trailer brake controller. Will be required with (F0G) 83" axle to end of frame, (FBC) 243" wheelbase and (JL1) trailer brake controller.)
- Tires, front 225/70R19.5G highway blackwall Hankook Max Axle Load: 7,940 lbs.
- Tires, rear 225/70R19.5G highway blackwall Hankook Max Axle Load: 15,000 lbs.
- Wheel, spare delete
- Windows, manual driver and front passenger
Installed
- 26,000 LBS. GCWR (11,793 KG)
- 6-SPEAKER AUDIO SYSTEM
- ADDITIONAL FUEL, 5 GALLONS
- AIR COMPRESSOR ACCESSORY DRIVE
- AIR CONDITIONING, SINGLE-ZONE (STD)
- ASSIST STEPS, ALUMINUM
- AUDIO SYSTEM, 7" DIAGONAL COLOR TOUCH-SCREEN WITH CHEVROLET INFOTAINMENT AM/FM stereo with seek-and-scan and digital clock, includes Bluetooth streaming audio for music and select phones.
- AXLE TO END OF FRAME, 75"
- BATTERY, TOP POST THREADED, BATTERY JUMP START STUD (located on battery box)
- BUMPER, FRONT CHROME
- DARK ASH SEATS WITH JET BLACK INTERIOR ACCENTS, CLOTH SEAT TRIM
- DPF, DIESEL PARTICULATE FILTER, MANUAL REGENERATION customer regeneration will not be allowed until the DPF load percentage has reached 100% full and a driver information center (DIC) message has been shown
- ELECTRICAL PROVISIONS, REAR OF CAB, UPFITTER, BODY BUILDER WIRING includes Sealed Connectors for Tail/Amber Turn/Marker/Backup/Accessory Power/Ground and Sealed Connector for Stop/Turn
- ENGINE BLOCK HEATER
- ENGINE BLOCK HEATER PROCESSING CODE
- ENGINE, DURAMAX 6.6L TURBO-DIESEL V8, B20-DIESEL COMPATIBLE 350 hp @ 2700 rpm, 700 lb-ft torque @ 1600 rpm (STD)
- EXHAUST BRAKE
- EXHAUST SYSTEM, REAR EXIT
- FRONT AXLE, 7,000 LBS., DANA SPICER D800-N, "I"-BEAM, NON-DRIVING
- FRONT FENDER EXTENSION, PAINTED BODY COLOR
- FRONT STABILIZER BAR
- FRONT SUSPENSION, 7,000 LBS. (3,175 KG) MULTI-LEAF, INCLUDES SHOCK ABSORBERS (STD)
- FUEL TANK, FRONT, 25 GALLON
- GRILLE GUARD SCREEN, STONE PROTECTION (mounted to bumper)
- GRILLE, CHROME
- GVWR, 19,500 LBS. (8845 KG)
- LICENSE PLATE KIT, FRONT
- MIRRORS, OUTSIDE HEATED POWER-ADJUSTABLE VERTICAL TRAILERING, UPPER GLASS, MANUAL-FOLDING AND EXTENDING, BLACK. Includes integrated turn signal indicators consisting of 51 square inch flat mirror surface positioned over a 24.5 square inch convex mirror surface with a common head and lower convex spotter glass (convex glass is not heated and not power adjustable) and addition of Auxiliary cargo lamp for backing up (helps to see trailer when backing up with a trailer) and amber auxiliary clearance lamp
- PAINT, SOLID
- POWER TAKE OFF, ENGINE CONTROL PROVISIONS
- REAR AXLE, 13,500 LB. (6,124 KG) DANA SPICER S14-110, SINGLE REDUCTION
- REAR AXLE, 4.30 RATIO Max road speed: 75 MPH
- REAR SUSPENSION, 15,500 LBS. (7,031 KG) MULTI-LEAF, VARI-RATE
- REAR VISION CAMERA, DISPLAY INTEGRATED INTO RADIO
- RECOVERY HOOKS, FRONT, FRAME-MOUNTED, BLACK
- REMOTE KEYLESS ENTRY
- RUGGED DUTY SERVICE TRANSMISSION, AUTOMATIC CLOSE-RATIO 6 SPD WITH DOUBLE OVERDRIVE, ALLISON, A1700RDS ratios: 3.10 1ST, 1.80 2ND, 1.40 3RD, 1.00 4TH, 0.70 5TH, 0.61 6TH Rugged Duty Series, 19.5K GVW & 26K GCW Max.,
- SEATS, FRONT 40/20/40 SPLIT-BENCH, 3-PASSENGER driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Vinyl has fixed lumbar and cloth has manually adjustable driver lumbar. (STD)
- SHOCK ABSORBERS, REAR
- SPARE TIRE DELETE (STD)
- SUMMIT WHITE
- TAIL LAMP PROVISIONS, LOCATED INSIDE OF FRAME
- TIRES, FRONT 225/70R19.5G HIGHWAY BLACKWALL CONTINENTAL Max Axle Load: 7,940 lbs.
- TIRES, REAR 225/70R19.5G TRACTION BLACKWALL CONTINENTAL Max Axle Load: 15,000 lbs.
- UPFITTER SWITCHES provides up to 4-30 amp circuits to facilitate installation of aftermarket electrical accessories located on the instrument panel
- WHEELBASE, 219" (556.3 CM), 138" CA
- WHEELS, 19.5" X 6.75", ALUMINUM, 8-HOLES, HUB PILOTED
- WINDOWS, POWER WITH DRIVER EXPRESS UP AND DOWN AND EXPRESS DOWN ON ALL OTHER WINDOWS
- WORK TRUCK PREFERRED EQUIPMENT GROUP includes standard equipment
Interior
- Air conditioning, single-zone
- Assist handle, front passenger and driver on A-pillars
- Audio system feature, 4-speaker system
- Audio system, 4.2" diagonal color display AM/FM stereo with USB port and auxiliary jack (Requires (AE7) front 40/20/40 split-bench seat. Not available with (UE1) OnStar or (U2K) SiriusXM Radio.)
- Cruise control, steering wheel-mounted
- Door locks, power
- Driver Information Center, 3.5-inch diagonal monochromatic display, provides warning messages and basic vehicle information
- Floor covering, Graphite-colored rubberized-vinyl
- Instrumentation, 6-gauge cluster featuring speedometer, fuel level, engine temperature, tachometer, voltage and oil pressure
- Interior trim, Jet Black/Dark Ash (Required and only available with (H2Q/H2R) Dark Ash seats with Jet Black interior accents.)
- Mirror, inside rearview manual day/night
- Seat Belt, Black
- Seats, front 40/20/40 split-bench, 3-passenger driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Vinyl has fixed lumbar and cloth has manually adjustable driver lumbar.
- SiriusXM, delete
- Speedometer, miles/kilometers
- Steering column, manual Tilt-Wheel
- Steering wheel, urethane
- Visors, driver and front passenger, vinyl
Mechanical
- Alternator, 150 amps
- Axle lubricant, rear, synthetic oil EmGard FE -75W-90
- Axle to End of Frame, 49" (Requires wheelbase (ED5) 201", (ED9) 165", (ER2) 189" or (FQT) 141". Not available with (G40), (GP1) or (GP8) rear air suspension.)
- Axle, limited slip, Dana Spicer Truetrac, torque proportioning limited slip
- Batteries, heavy-duty dual 1100 cold-cranking amps, includes battery box mounted to left side under cab
- Brakes, hydraulic, heavy duty Bosch/Meritor/Wabco system with 4-channel (ABS) (Includes (J69) driveline park brake.)
- Capped Fuel Fill
- Emissions, USA 50 State certified
- Engine, Duramax 6.6L Turbo-Diesel V8, B20-Diesel compatible 350 hp @ 2700 rpm, 700 lb-ft torque @ 1600 rpm
- Exhaust system, right side exit, behind rear wheel (Requires (FQT) 141" wheelbase.)
- Front axle, 7,000 lbs., Dana Spicer D800-N, "I"-beam, non-driving (Requires (FK6) 7,000 lb. (3,175 kg) front suspension.)
- Front suspension, 7,000 lbs. (3,175 kg) multi-leaf, includes shock absorbers
- Fuel tank, rear only, 40 gallon, mounted between frame side rails and behind rear axle
- Fuel, diesel B20
- GVWR, 16,500 lbs. (7484 kg) (Silverado 4500HD Requires (FTA) 7,000 lb. front axle/(FK6) suspension and (FN1) 10,000 lb. rear axle and (GR3) 11,000 lb. rear suspension or (G40) 12,000 lb. rear air suspension, or (FTD) 6,000 lb. front axle/(F95) suspension, (GL4) 11,000 lb. rear axle and (GR3) 11,000 lb. or (GR4) 13,500 lb rear suspension, or (G40) 12,000 lb. rear air suspension, or (FTA) 7,000 lb. front axle/(FK6) suspension and (FU7) 15,500 lb. rear suspension or (GP8) 15,500 lb. rear air suspension and (HD1) 15,000 lb. rear axle, or (FTA) 7,000 lb. front axle/(FK6) suspension and (G40) 12,000 lb. rear air suspension or (GP1) 13,500 lb. rear air suspension or (GR3) 11,000 lb. rear suspension or (GR4) 13,500 lb. rear suspension and (GL4) 11,000 lb. rear axle. Not available with rear air suspension when ordered with (FQT) 141" wheelbase.)
- Highway Service Transmission, Automatic close-ratio 6 SPD with double overdrive, Allison, A1700HS ratios: 3.10 1ST, 1.80 2ND, 1.40 3RD, 1.00 4TH, 0.70 5TH, 0.61 6TH Highway Series, 19.5K GVW & 26K GCW Max., requires PTX and park pawl. Available with GVWs less than or equal to 19.5K (Requires (C5B) 15,000 lbs. GVWR, (C7P) 16,000 lbs. GVWR, (C7R) 16,500 lbs. GVWR, (GZX) 17,500 lbs. GVWR, (GZJ) 18,000 lbs. GVWR or (GZG) 19,500 lbs. GVWR. Requires (R6G) 26,000 lb. GCWR (11,793 kg).)
- Incomplete vehicle
- Rear axle, 10,000 lb. (4,536 kg) Dana Spicer S14-110, single reduction
- Rear axle, 4.10 ratio Max road speed: 79 MPH (Not available with Allison 1750 transmission with 30,000 GCWR rating (MJ0), (MI0), (MHV), (ME0).)
- Rear suspension, 11,000 (4,990 kg) multi-leaf, vari-rate (Not available with air suspension.)
- Rear wheel drive
- Steering, power (Bosch S2 8014 Plus)
- Transmission shift control calibration, fuel sense Performance
- Wheelbase, 141" (358.1 cm), 60" CA (Requires (F0C) 49" axle to end of frame and (NPR) exhaust. Not available with rear air suspensions.)
Safety
- Airbag deactivation switch, frontal passenger-side (Included and only available with (AK5) frontal, driver and right front passenger airbags.)
- Airbags, Single-stage frontal airbags for driver and front outboard passenger; Includes airbag deactivation switch for front outboard passenger airbag (Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
- Brake, parking, driveline park brake system
- Daytime Running Lamps, with automatic exterior lamp control
- Horn, single-note
- OnStar, delete
- Traction control
SPECIAL OFFERS
No offer found
ABOUT THIS VEHICLE
10-Way Power Driver's Seat Adjuster, 26,000 lbs. GCWR (11,793 kg), 4.2" Diagonal Color Display Driver Info Center, 40/20/40 Front 3-Passenger Split-Bench Seat w/Lockable Storage, 5 Gallons Additional Fuel, 6 Speakers, 6-Speaker Audio System, 75" Axle To End Of Frame, ABS brakes, Air Compressor Accessory Drive, Air Conditioning, Aluminum Assist Steps, AM/FM radio: SiriusXM, Auto-Dimming Inside Rear-View Mirror, Auto-dimming Rear-View mirror, Black Frame-Mounted Front Recovery Hooks, Body Color Painted Front Fender Extension, CD player, Chevrolet 4G LTE, Chevrolet Connected Access, Chrome Front Bumper, Chrome Grille, Cloth Seat Trim, Compass, Delay-off headlights, Driver & Front Passenger Visors, Driver door bin, Driver vanity mirror, Dual front impact airbags, Dual rear wheels, Emergency communication system: OnStar and Chevrolet connected services capable, Engine Block Heater, Exhaust Brake, Front Center Armrest w/Storage, Front License Plate Kit, Front reading lights, Front Stabilizer Bar, Frontal Passenger-Side Airbag Deactivation Switch, Fully automatic headlights, Heated door mirrors, Illuminated entry, Leather Wrapped Steering Wheel, Manual Regeneration Diesel Particulate Filter DPF, Occupant sensing airbag, OnStar & Chevrolet Connected Services Capable, Outside temperature display, Overhead console, Panic alarm, Passenger cancellable airbag, Passenger door bin, Passenger vanity mirror, Power door mirrors, Power driver seat, Power steering, Power Take-Off Engine Control Provisions, Power windows, Power Windows w/Driver Express Up & Down, Premium audio system: Chevrolet MyLink, Radio: AM/FM Stereo w/8" Diagonal Color Touch Screen, Rear Shock Absorbers, Rear Vision Camera, Remote Keyless Entry, Remote keyless entry, Single-Slot CD/MP3 Player, Single-Zone Air Conditioning, SiriusXM Radio, Speed control, Steering Wheel Audio Controls, Steering wheel mounted audio controls, Stone Protection Grille Guard Screen, Tachometer, Tail Lamp Provisions Located Inside Of Frame, Tilt steering wheel, Top Post Threaded Battery Jump Start Stud, Trip computer, Turn signal indicator mirrors, Upfitter Electrical Provisions In Rear Of Cab, Upfitter Switches, Variably intermittent wipers, Voltmeter, Wheels: 19.5" x 6.75" Black Painted Hub Piloted Steel w/8-Holes, Wheels: 19.5" x 6.75" Hub Piloted Aluminum w/8-Holes.
